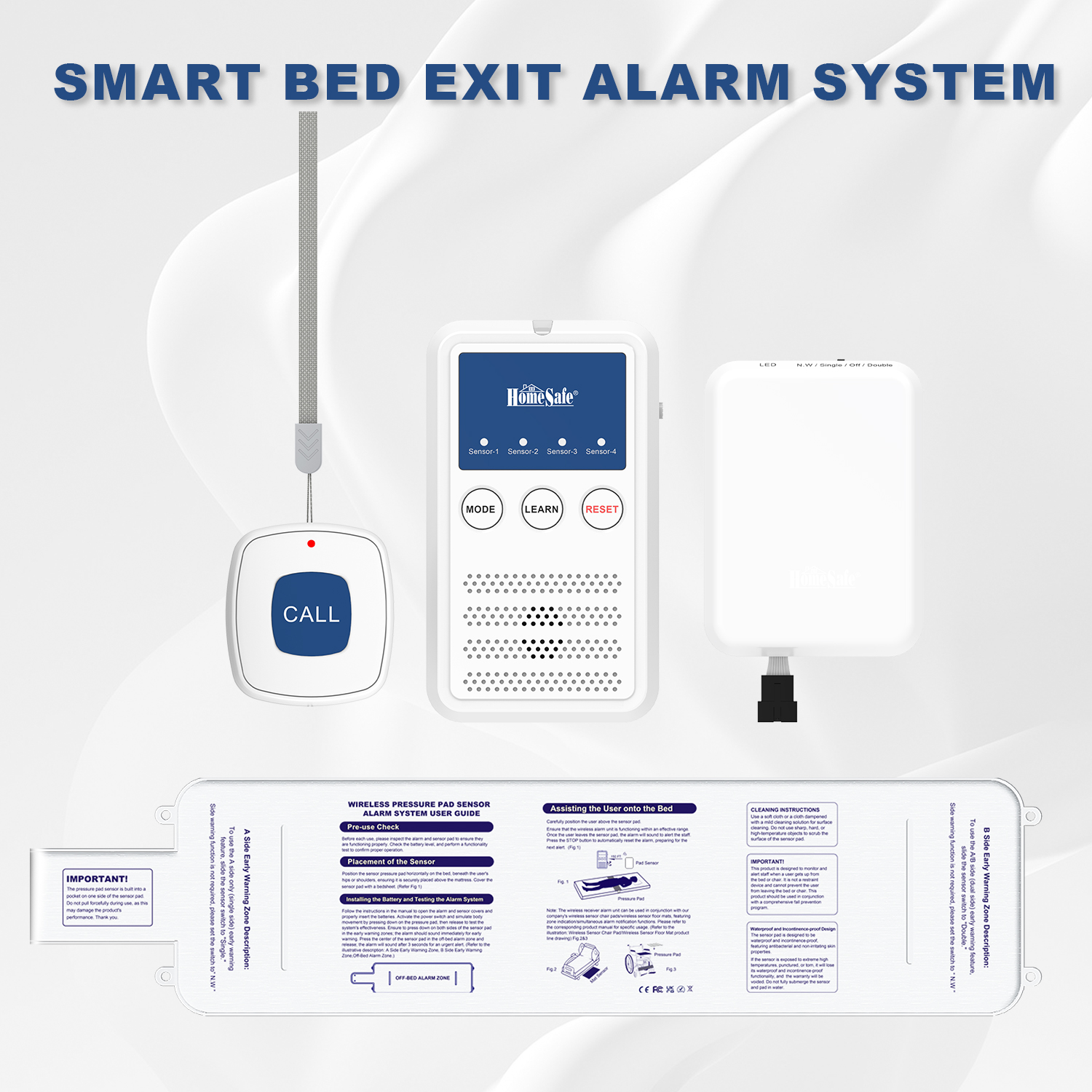

Sensor Pad & Transmitter Unit

• Pressure sensor pad detects human body leaves the bed (or almost fall down) then triggers wireless signal emitting to the receiver unit
• Multiple pressure sensors configured at different zones of the pad
• External transmitter unit with 2 meters long connection wire
• Wireless RF transmission range is up to 40m
• Low power LED indicator

Receiver Alarm Unit

• Receiver alarm unit receives the signal and activates the alarm with sound/light/vibration to alert the caregiver
• Receiver unit can be paired with maximum 4 sensor pads and has LED indicators to distinguish the corresponding sensor pads

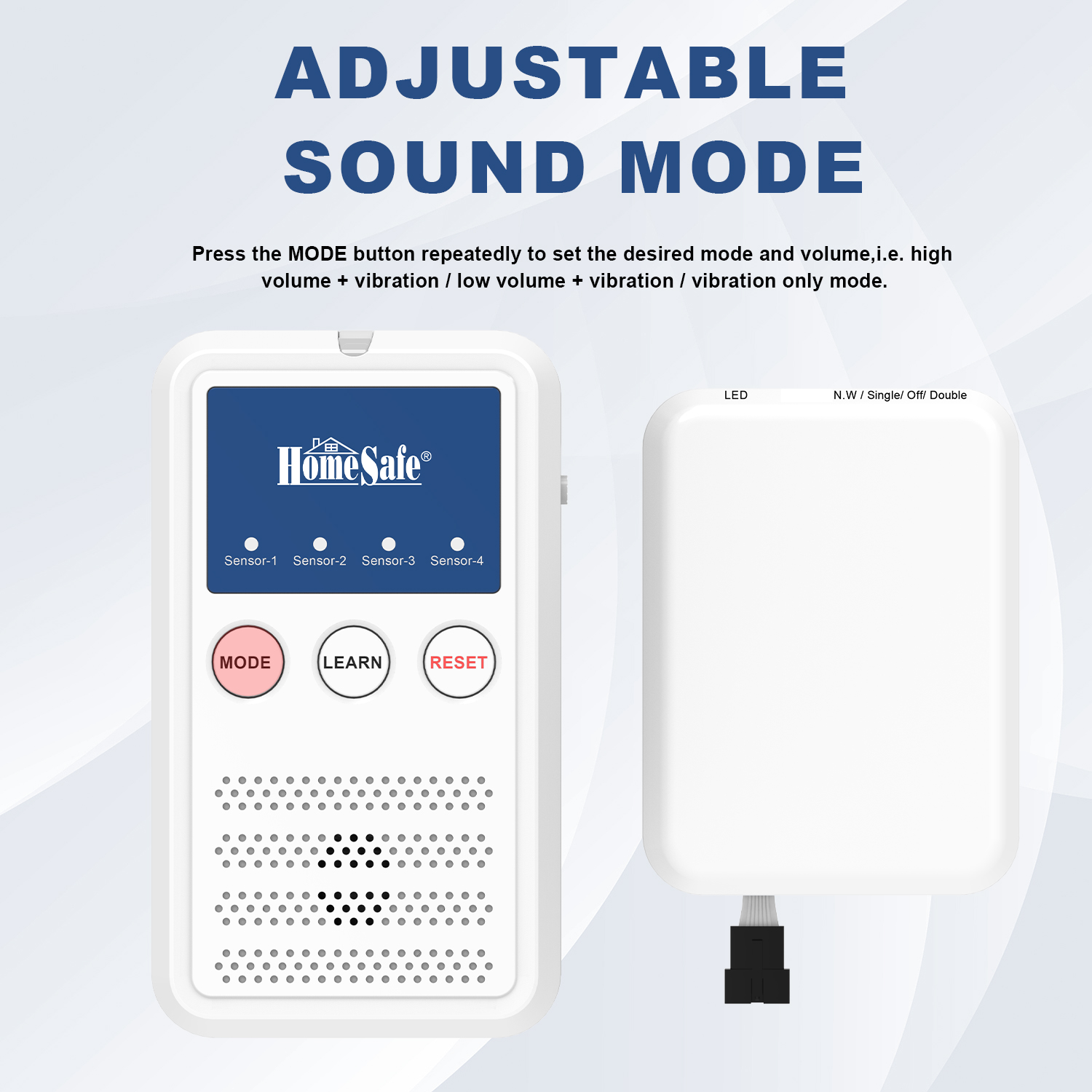

• Different alarm modes: High-volume+Vibration/Low-volume+Vibration/Vibration-Only
• Power On/Off switch
• Low power LED indicator
• Portable compact design; and can be hung on wall or sitting on table

Emergency Call Button

• Press the CALL button to trigger the wireless signal emitting to the receiver alarm unit and activates the alarm to alert the caregiver
• Packaged with one handy device which can be hanged around the neck. (Optional wrist band version)

Power Source:

• Sensor Pad & Transmitter Unit: 2 x AAA size batteries (not included)
• Receiver Alarm Unit: 2 x AA size batteries (not included)
• Emergency Call Button: 1 x CR2032 battery (not included)

Dimension (LxWxH):

• Pressure Mat: Optional sizes for different scenarios

• 90 x 25 cm (recommended to put on the bed)
• 56 x 36 cm (recommended to put on the floor of the bedside)
• 36 x 36 cm (recommended to put on wheelchair)

• Transmitter Unit:  30 x 25 x 75 mm
• Receiver Alarm Unit:  60 x 35 x 100 mm
• Emergency Call Button: 50 x 43 x 13 mm
